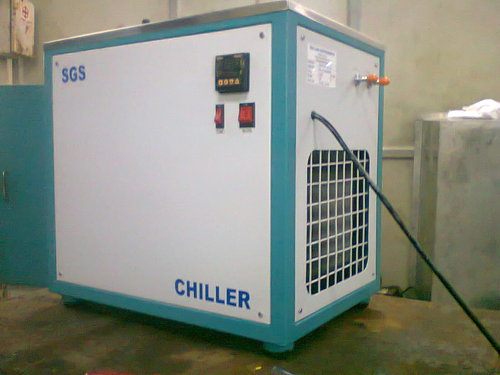

CHILLER

CHILLER
CHILLER
Product Code : SGS 09
Brand Name : SGS MAKE
Product Description

Leveraging on our modern industrial know how, we have turned into a prominent exporter, manufacturer, and supplier of a wide array of Ultra Cryostat Bath. Manufactured using quality sanction raw material under the direction of talented experts, it generally utilized for cleaning purposes. Our offered extent is refreshing for its high quality, low power utilization, immaculate completion, destructive resistance and toughness. We offer this item in diverse determinations and can likewise be modified according to the necessities of customers. Our array of Ultra Cryostat Bath is best acclaimed for highlights like longer administration life , reduced size , vigorous development , simple to introduce , low working expense , low support etc.

Chillers are widely used in Chemistry labs, chemical labs, pharma division, biotech, Fertilizer division, R&D & QC divisions.
Standard Models

Model no.

Tank Capacity in Ltr.

Temp. range

SGS-09 CH01

6

5°C to Ambient

SGS-09 CH02

12

SGS-09 CH03

25

SGS-09 CH04

50

Chiller also available as per customer requirements.

Standard Specification

Model

Floor / table top type

Temperature range

Ambient to 5°C

Temperature control

+ 1°C

Temperature Uniformity

Better than + 2°C

Ambient Temp. Recommendation

< 30.0°C

Display Resolution & Control Sensitivity

0.1°C

Control Readout

Actual and Set point

Controller

Digital Microprocessor based PID

Sensor

Pt 100 (RTD)- 3 wire

Stirrer / Pump cum stirrer

Maintain temperature uniformity & for circulation

Pump Capacity

4-6 lit. @ zero head

Cooling

CFC free Single stage refrigeration system

Heating

Provided only for better accuracy (if required)

Alarm type

Deviation High or Low

Inner tank

Stainless steel 304 grade dully polished

Outer

Mild steel CRCA sheet with powder coating

Lid

Plain lid

Compressor

Hermetically sealed Emerson make

Condensor

Fin and tube air cooled

Refrigerant

CFC Free R134a/ R404a

Insulation

PUF Poly Urethane Foam

Wheels

For easy moving

Power supply

Single Phase  230VAC, 50Hz

Optional Features

Voltage Stabilizer

For refrigeration system

Pump with higher capacity

For more circulation Liters / minute

NABL Certified Calibration Certificate

For temperature controller

Data Logging

PC interface through RS232 Communication module

Note: For continuous development the above technical specification & design, SGS reserves rights to change without any prior notice.
