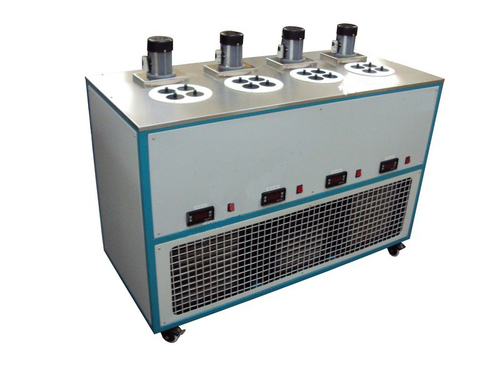

CLOUD AND POUR POINT APPARATUS

CLOUD AND POUR POINT APPARATUS
CLOUD AND POUR POINT APPARATUS
Product Code : SGS 10
Brand Name : SGS MAKE
Product Description

We are a prime exporter, manufacturer, and supplier of a wide extent of Cloud And Pour Point Apparatus. These contraption are broadly utilized for testing oil temperature of glimmer scope of encompassing. These pour point mechanical assembly are produced utilizing refined plant apparatus that is coupled with cutting edge innovation. The computerized temperature pointers with cutting edge sensors are utilized successful controlling the temperature inside the device. Our array of Cloud And Pour Point Apparatus is all around acclaimed for highlights, for example, dimensional precision, high productivity, low support etc

Cloud and pour point apparatus are widely used in Chemical labs, Oil industries, Petro chemical divisions, R&D & QC divisions.
Standard Models - Floor / Table top.

Model no.

Test Positions

No. of Tanks

Temperature range

SGS-10 CP01

2 / 4 for each tank

Single

-80°C to 0°C.

SGS-10 CP02

Two

0°C, -17°C.

SGS-10 CP03

Three

0°C, -17°C, -34°C.

SGS-10 CP04

Four

0°C, -17°C, -34°C, -51°C.

Cloud and pour point apparatus also available as per customer requirements.

Standard Specification

Testing procedure meets

as per ASTM D97( Pour) & ASTM D 2500 (Cloud)

Model

Floor / table top type

Temperature range

Refer Standard Models

Temperature control

+ 2°C

Ambient Temp. Recommendation

< 30.0°C

Display Resolution & Control Sensitivity

0.1°C

Control Readout

Actual and Set point

Controller

Digital Microprocessor based PID

Sensor

Pt 100 (RTD)- 3 wire

Stirrer

Maintain temperature uniformity (if required)

Cooling up to -40°C

CFC free Single stage refrigeration system for each tank

Cooling below -40°C

CFC free Double stage (Cascade) refrigeration system for each tank

Heating

Provided only for better accuracy (if required)

Alarm type

Deviation High or Low

Inner tank

Stainless steel 304 grade dully polished

Outer

Mild steel CRCA sheet with powder coating

Test positions

Refer STANDARD MODELS

Compressor

Hermetically sealed Emerson make

Condensor

Fin and tube air cooled

Refrigerant

Thermometer CFC Free R134a/ R404a & Suva 95

Insulation

High density PUF - Poly Urethane Foam

Wheels

For easy moving with front locking facility

Accessories

Copper Jacket, Test jars, Disc, Gasket, Cork for each test positions of each tank

Power supply

Single Phase - 230VAC, 50Hz

Optional features

Voltage Stabilizer

For refrigeration system

Thermometer

IP IC

NABL Certified Calibration Certificate

For temperature controller

Data Logging

PC interface through RS232 Communication module

Note: For continuous development the above technical specification & design, SGS reserves rights to change without any prior notice.
