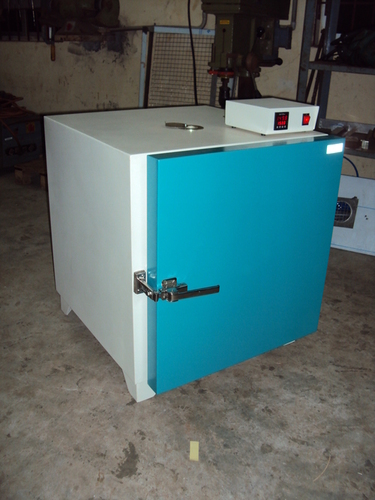

Hot Air Oven

Hot Air Oven
Hot Air Oven
Product Code : SGS 11
Brand Name : SGS MAKE
Product Description

We are a trusted exporter, manufacturer, supplier of a wide gamut of Hot Air Oven. Heat chamber / oven are widely used in Chemistry labs, Chemical labs, Pharma division, Biotech, Fertilizer division, R&D & QC divisions, & Educational institutes. These chamber are widely acclaimed by the clients for their high functionality, reliability and many other features. We use high grade raw material for the manufacturing of these chambers that makes them durable. We have reasonably priced our range. Our range of Hot Air Oven is best regarded for features such as efficient, durable and so on.

Heat chamber / oven are widely used in Chemistry labs, Chemical labs, Pharma division, Biotech, Fertilizer division, R&D & QC divisions, & Educational institutes.
STANDARD MODELS - Floor / Table top.

Type

Model no.

Temp. range

Model no.

Temp. range

Model no.

Temp. range

Chamber size in mm.

Floor / Table top

SGS-11HC1A

5°C above ambient to 100°C

SGS-11HC2A

5°C above ambient to 200°C


SGS-11HC3A

5°C above ambient to 250°C


450 x 450 x 450

SGS-14HC2B

SGS-11HC2B

SGS-11HC3B

600 x 600 x 600

SGS-11HC1C

SGS-11HC2C

SGS-11HC3C

750 x 750 x 750

SGS-11HC1D

SGS-11HC2D

SGS-11HC3D

1000 x 1000 x1000

Heat chamber also available in different sizes as per customer requirements.

Standard Specification

Model

Floor / Table top

Temperature range

5°C to above ambient to 100°C / 150°C /200°C / 250°C

Temperature control accuracy

+ 0.1°C / + 1°C

Ambient Temp. Recommendation

Ambient

Display Resolution & Control Sensitivity

0.1°C

Control Readout

Actual and Set point

Controller

Digital Microprocessor based PID

Sensor

Pt 100 (RTD)- 3 wire

High temperature safety cut off

2.0°C

Boost heater cut off

2.0°C

Heating

SS Air heater to control Set temperatures

Air Circulation with /without

To maintain temperature uniformity

Alarm type

Deviation High or Low

Inner Chamber

Stainless steel 304 grade dully polished

Outer

Mild steel CRCA sheet with powder coating

Door

Fully front opening, inner lined with SS, Handle & lock

Gasket

Silicone / Asbestos

Boost heater

For additional heat

Specimen protection

To avoid any malfunction during test condition

Viewing window

200mm x 200mm through toughened glass(If required)

Insulation

Glass wool / Ceramic wool

Number of Shelves

Adjustable type, Mesh trays according chamber capacity

Legs

Fixed legs

Power supply

Single Phase - 230VAC, 50Hz / Three phase 440VAC,50Hz.

Port Hole

If required

Optional features

Programmable Controller

For cyclic operation

Calibration Certificate

NABL certified certificate for temperature controller

Data Logging

PC interface through RS232 / 485 Communication module with i-tool software

Machine status

Hooter , tower lamp, Time Totalizer

Digital timer

With selectable Units- Hour / minute / seconds

Note: For continuous development the above technical specification & design, SGS reserves rights to change without any prior notice.
