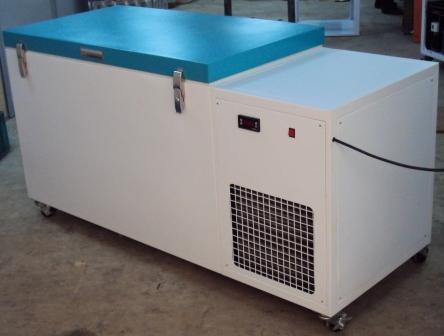

Sub Zero Treatment Chamber

Sub Zero Treatment Chamber
Sub Zero Treatment Chamber
Product Code : SGS 13
Brand Name : SGS LAB INSTRUMENTS
Product Description

Working with an aim to achieve total customer satisfaction, we are regarded as the topmost manufacturer and exporter of Sub Zero Treatment Chamber. It is widely used in various industries like electronics, insulators testing, pharmaceutical, rubber and automobile. Specifically engineered for storage of materials under zero temperature condition, this is tested on standard parameters before the final delivery. We are offering this Sub Zero Treatment Chamber to clients at feasible price.

Features:

  • Low power consumption
  • Requires less maintenance
  • Integrated with safety measures

SUB ZERO TREATMENT CHAMBER

Subzero treatment chamber are widely used in Chemical labs, Automobile industries, Rubber industries, Pharma, R&D & QC divisions, Electronics, Insulators testing and Metallurgy testing.

STANDARD MODELS -Vertical / Horizontal.

Type

Model no.

Temp. range

Model no.

Temp. range

Model no.

Temp. range

Chamber size in mm.

Upright

SGS-13 V2A



-20°C to  Ambient

SGS-13 V4A



-40°C to  Ambient



SGS-13 V8A



-80°C to  Ambient



450 x 450 x 450

SGS-13 V2B

SGS-13 V4B

SGS-13 V8B

600 x 600 x 600

SGS-13 V2C

SGS-13 V4C

SGS-13 V8C

750 x 750 x 750

SGS-13 V2D

SGS-13 V4D

SGS-13 V8D

1000 x 1000 x1000

Chest

SGS-13 H2A



-20°C to  Ambient



SGS-13 H4A



-40°C to  Ambient



SGS-13 H8A



-80°C to  Ambient



500 x 450 x 450

SGS-13 H2B

SGS-13 H4B

SGS-13 H8B

750 x 450 x 500

SGS-13 H2C

SGS-13 H4C

SGS-13 H8C

1000 x 450 x 600

SGS-13 H2D

SGS-13 H4D

SGS-13 H8D

1200 x 500 x 500

*Cold Chamber / Subzero Treatment Chamber also available in different sizes as per customer requirements.



Standard Specification



Model

Floor type Front / Top loading

Temperature range

-20°C to Ambient/  -40°C to ambient / -80°C to -20°C

Temperature control accuracy

+ 0.1°C / + 2°C

Ambient Temp. Recommendation

< 30°C

Display resol. & Control Sensitivity

0.1°C

Control Readout

Actual and Set point

Controller

Microprocessor based PID

Sensor

Pt 100 (RTD)- 3 wire

Cooling up to -40°C

CFC free Single stage refrigeration system

Cooling below -40°C

CFC free Double stage (Cascade) refrigeration system

Heating

SS Air heater to control Set temperatures (if required for better accuracy)

With / without - Air Circulation

To maintain temperature uniformity CC / for subzero treatment chamber

Alarm type

Deviation High or Low

Inner Chamber

Stainless steel 304 grade dully polished

Outer

Mild steel CRCA sheet with powder coating

Door

Fully front opening, inner lined with SS, Handle & lock

Gasket

Magnetic type

Compressor & Condensor

Hermetically sealed Emerson / Danfoss make,  & Fin and tube air cooled

Refrigerants

CFC Free R134a / R404a & Suva 95

Viewing window

200mm x 200mm through toughened glass(If required)

Insulation

 High density PUF - Poly Urethane Foam

Number of Shelves

Adjustable  type, Mesh trays according chamber capacity (for vertical model)

Wheels

For easy moving with front locking facility

Power supply

Single Phase- 230VAC, 50Hz / Three phase 440VAC,50Hz.

Port Hole

As per customer requirement (if required)

Optional features


Programmable Controller

1-4 or 1-20 programs with cyclic operation

Calibration Certificate

NABL certified certificate for temperature controller

Data Logging

PC interface through RS232/ 485 Communication module with i-tool software

Machine status

Digital Timer, Hooter , Tower lamp

Note: For continuous development the above technical specification & design, SGS reserves rights to change without any prior notice.
